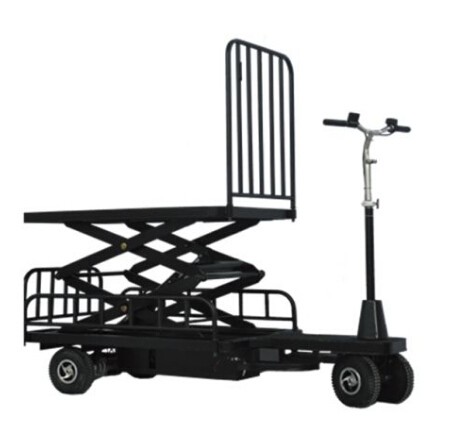

HG-DH-LS1-C8 (Standing Driving Electric Lifting Platform Trucks/) " √" this symbol represents the default option/ |
|
Model/ | HG-DH-LS1-C8 |
Products Fence/ | " √" No Fence/ Small Fence/ Customize Fence/ |
Products Size/ | L200*W94*H142(CM) |
Table Size/ | L125*W80(CM)(Customize Size Available/) |
Table Height/ | Lowest Height: 46CM Max Height: 160CM |
Max Capacity/ | 500 KGS |
Motor Power/ | 800W |
Lifting Power/ | 800W |
Speed Adjust Range/ | 1.5 KM/H ~ 8 KM/H |
Brake/ | Magnetic Eddy Brakes/ |
Controller/ | Curtis 24V 110An |
Electronic Throttle/ | Chinese Throttle with Normal Power Display/ |
Battery Type/ | Maintenance-Free Lead-Acid Batteries/ (Cycle 500 Times Within 1 Year/500) |
Battery Capacity/ | √"24V 50An or 24V 60An |
Endurance/(25ºC Flat Road) | 24V 50An 450KGS 4 /Hours |
Charger Manufacturer/ | Taiwan Manufacturer/ or "√"Chinese Manufacturer/ |
Charger Current/ | "√" 24V 8An |
Charge Time/(25ºC) | 24V 8An 10/Hours |
Charger Plug Type/ | European American South Africa Australia Other ________ |
Tyre Size/ | 10 Inch |
Tyre Type/ | "√"Solid Tyre/ ChengShin Pneumatic Tyre/ |
Caster Size/ | 6 Inch |
Reflective Edge Sticker/ | "√"Fluorescent Yellow/ Green/ Yellow/ Silver/ Red/ Royal Blue/ |
Cart Color/ | "√"Black/ Or White/ |
Packing/ | One truck with one carton and one pallet (MDF)/ |
