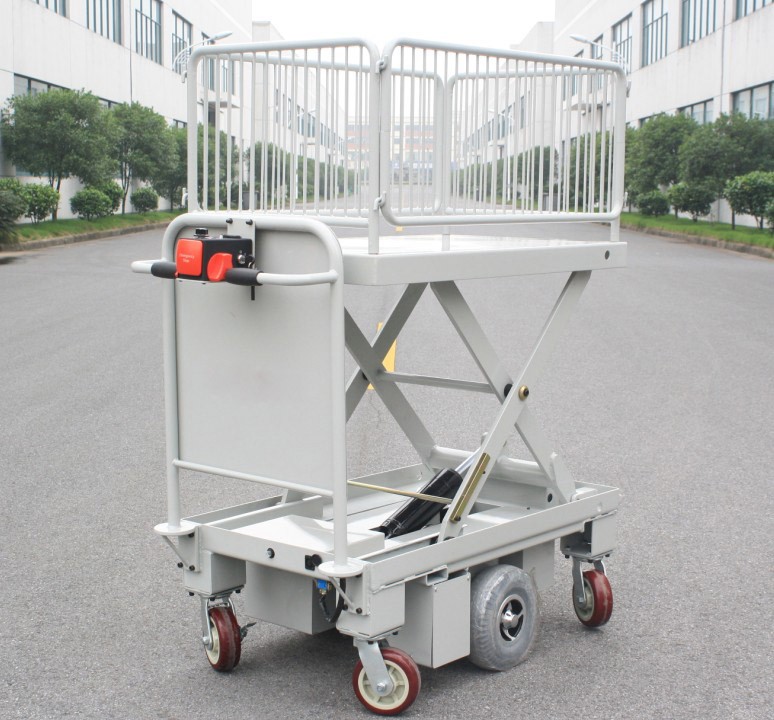

Centre Drive Electric Lift Table with Fence for material handling equipment
Technical Specifications:
1).Product size: 1240x600x1100mm
2).Platform size: 1000x600mm
3).Minimum plate height: 460mm
4).Maximum plate height: 1000mm
5).Turning radius: 1200mm
6).Charger: 24V, UL or CE Certificate
7).Moving motor:24V/400W
8).Lifting motor:24V/800W
9).Max climbing capability: 12o
10).Battery: 12V/33AH x 2
11).Charge time: 8-10hours
12).Continuous working time: 6hours
13).Max.load capacity: 400kg
14).Cart's finish is Grey Powder coated
15).Curtis Controller 70A, Curtis throttle
16).10" Solid nylon drive wheel
17).6" Caster with brake
18).Strong fixture handle with switch box integration
19).Adjustable moving speed: 3-6km/h
Packing size:116x66x85cm
G.W/N.W:190/180kg
Packaging:1pc/pallet
Trade Term:FOB Shanghai
Payment Term:T/T 30% deposit,balance 70% against copy of B/L.
Mininum Order: 5Units
\Curtis/
