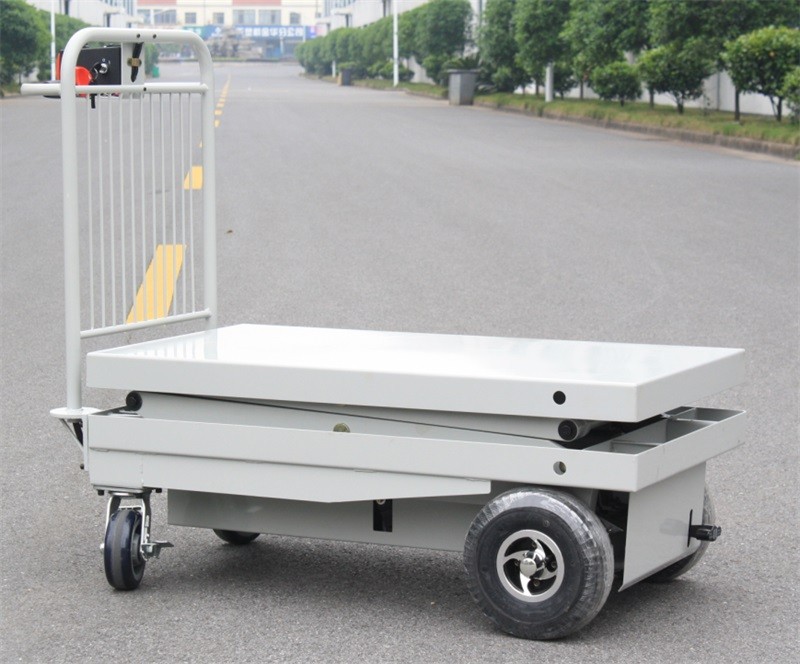

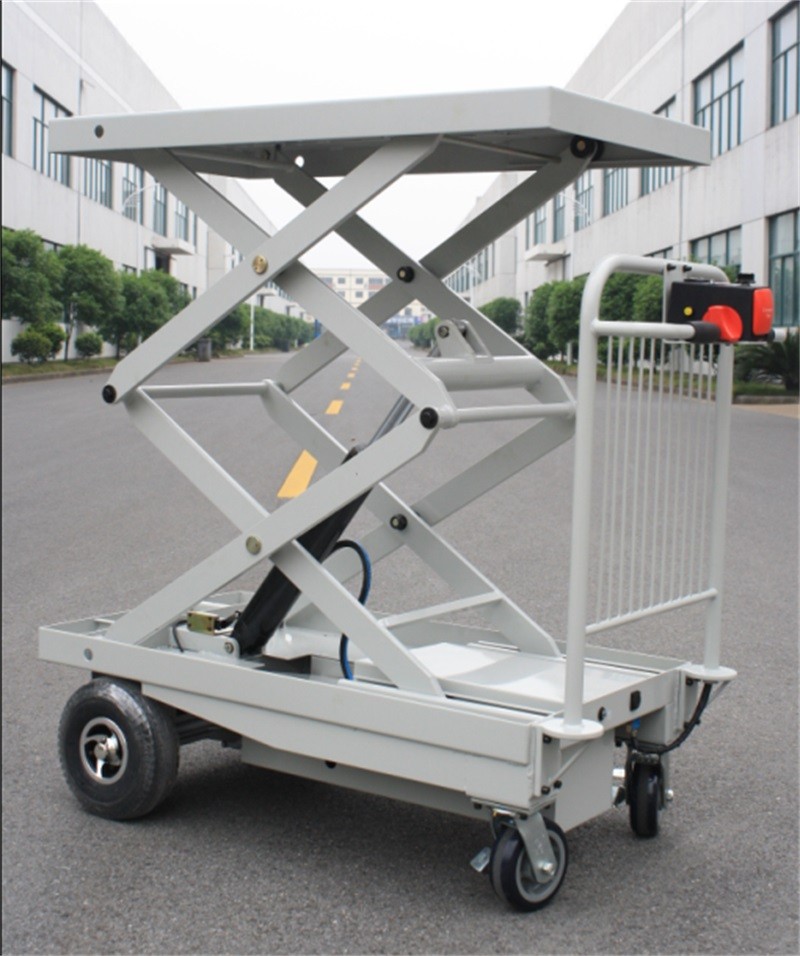

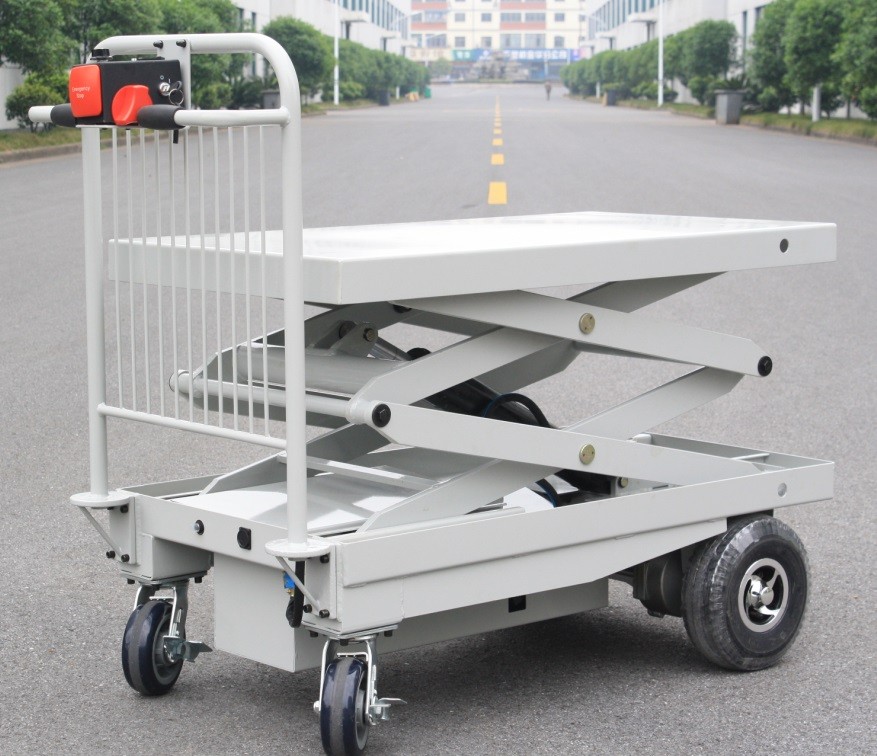

Powered Scissor lift table for material handling equipment
Technical Specifications:
Full size |
1340x600x1100mm |
Driving Motor |
400w |
Plate size |
1100x600mm |
Lifting motor |
400w |
Min Plate height |
460mm |
Battery |
2x12V 40AH |
Max Plate height |
1600mm |
Controller |
70A |
Net weight |
234kg |
Working time |
6hours |
Rated loading |
400 kg |
Charge time |
8-10hours |
Curtis/USA
controller
Key for power ON/OFF
LED Battery Level Gauge
Emergency Stop Switch
Butterfly Button
used in wide range of factories, shops, warehouses and hospitals.
Trade Terms:
1)The Price is based on regular packing condition/MOQ/FOB Shanghai. Can be
discussed with different trade conditions;
2)Supply ability: 200sets per month;
3)MOQ:5pcs;
4)Payment Terms : 30% by T/T as deposit, Balance Upon copy of BL
5)Delivery Lead Time: 40 days after receiving the 30% deposit
